Pertronix Ignitor Wiring Diagram - pertronix ignition wiring diagram, pertronix ignitor ii wiring diagram, pertronix ignitor iii wiring diagram, Every electrical arrangement is made up of various different components. Each component ought to be placed and linked to different parts in particular manner. If not, the arrangement will not function as it ought to be.

You may also logon to www.pertronix.com for the latest technical information. Ignitor™ COMMON QUESTIONS AND ANSWERS. FIGURE 1. WIRING DIAGRAM. CONVENTIONAL.2 pages

Pertronix ignitor wiring diagram

troubleshooting tips for your pertronix ignitor® and coil installation first, read the instructions that came with your kit or coil! note: the pertronix ignitor is effectively a "go" or "no" system. this means that if the ignitor has a fault, it will not operate at all.. if the vehicle has an intermittent fault, at certain times or revs, this is generally an

The wiring diagram shown below is modeled after one obtained from Pertronix. This shows the proper hookup for a Pertronix Igniter in a car wired for negative ground, or earth if you prefer. It goes without saying that this is valid only for cars without ballast resistors, viz., our T-series cars.

Ignitor II and Ignitor III ignition systems require a full +12V power connection between the ignition switch and the positive coil terminal. MostAMC, Chrysle r and Ford vehicles are equipped with OE resistance wires or ballast resistors. All pre 1974 (Non HEI) GM vehicles are equipped with OE resistance wire.

Pertronix ignitor wiring diagram.

1. See figure B for wiring diagram. 2. Remove the ignition switch wire from the negative coil terminal. 3. Connect the black Ignitor wire directly to the ignition switch wire. 4. Connect the Ignitor black/white wire to negative (-) side of the ignition coil. 5. Connect an insulated, AWG 20 copper stranded wire

(Wiring Diagram, Pertronix 6 volt Ignitor 1188P6 ) Before your order one, READ the NOTES below. Wiring schematic for 6 volt, Positive Ground, Pertronix Ignitor ( 1188P6 ) Original wiring is from IGN switch (coil term) to (-) term on 6 volt coil. (+) term on 6 volt coil to distributor, to points, which are grounded on one side. New schematic-

This is the blue wire with the white female terminal that exits at the center-left dash panel shown below. You will also need a male (bullet) terminal (similar to the one shown below) to splice or solder to the Pertronix Ignitor TM red wire and connect to the existing solenoid wire terminal.

1. See figure “B” for wiring diagram. 2. Remove the ignition switch wire from the negative coil terminal. 3. Connect the ...

Yes, most capacitive discharge boxes are compatible with the Ignitor. Special wiring instructions should be followed. Click on the appropriate diagram for ...‎How difficult is it to install an... · ‎What type of coil can I use with...

Pertronix Ignitor Wiring Diagram. 11.09.2018 11.09.2018 1 Comments on Pertronix Ignitor Wiring Diagram. PerTronix, Inc. warrants to the original Purchaser of its solid-state ignition system (product) that the Ignitor shall be free from defects in material and workmanship for a period of (30) months . WIRING DIAGRAM IGNIT.

wiring diagram ignitor system without ballast resistor to r= dist. to ignition switch "'" ~" wire ignition w ire '0 coil m ignitor igi-iitor note: a resistor 'f'ire or ballast resistor may or m,,\y not be includ ed in the original jquipment. they are not to be chailiged in any way with the installaticfln of an ignitor system. wire to ignition

Mercedes used a transistorized ignition system for many years. The Ignitor's can completely eliminate these systems or work in conjunction with the transistorized systems. Below is a diagram that will help with wiring the Ignitor's up to the transistorized system. Merecedes Wiring Diagram.pdf

nents. Determine the proper wire length, and attach the provided terminals. (Use a wire crimping tool to achieve an adequate connection). 1. Attach the Red wire to the coil positive terminal or a 12-volt ignition source. 2. Attach the Black wire to the coil negative terminal. 3. Check to insure correct polarity and that all connections are ...

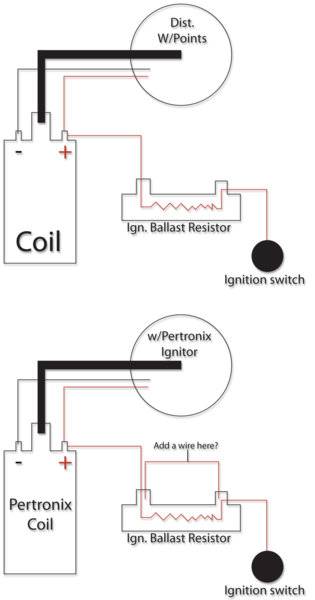

Ok so i misplaced my diagram for the connections of the ignitor and coil. went to the pertronix site and not available. anyone have the diagram that you can email or post a pic of. Im bypassing the resistor wire today so im aware of that issue, but need to know how to interconnect everything...

The PerTronix T3001 quick change crimp tool provides excellent ... the Digi-tal HP main battery power leads directly to the battery. If necessary, the wires can be extend with 10 - 8 AWG wire. Expanded wiring diagrams for various application can be found on pages 23-27 of : this manual. ... This wire is connected to the ignition switch wire or ...

Nov 13, 2011 — The Ignitor II likes to see .06Ω resistance, but will work OK with up to 1.5Ω which many stock coils are (without the resistor). The Ignitor III ...

How to install a pertronix ignitor ignition system classic car episode 280 autorestomod

12. Connect the Ignitor black wire to the negative (-) side of the ignition coil. 13. Connect the Ignitor red wire to the positive (+) side of the ignition coil. 14. Reconnect the battery and make sure all wires are connected correctly. 15. The engine can now be started. Let the engine run for a few minutes and

Pertronix negative ground wiring

Pertronix Ignition Wiring Diagram - Data Wiring Diagram Schematic - Pertronix Ignitor Wiring Diagram. Wiring Diagram consists of several in depth illustrations that display the connection of assorted things. It includes instructions and diagrams for various types of wiring techniques along with other products like lights, windows, etc.

Breakerless se vs pertronix - corvetteforum - chevrolet ...

73 240z Pertronix Ignition Wiring Diagram. First was to add the PerTronix Ignition Kit including electronic points and a new coil, So I traced the Tach wiring on the wiring diagram, and to my surprise, the. PERTRONIX IGNITOR DATSUN Z 6 CYL PERTRONIX 15 in Stock $ Quantity. PERTRONIX Fits Z Datsun 6 cylinder epoxy molding makes our module ...

Bob johnstones studebaker resource website (wiring diagram ...

Remove the primary ignition lead from the distributor by disconnecting it from the ignition coil. Then, push the lead through the distributor housing. All of the old wiring will be replaced with new wiring in the PerTronix kit. 5. The PerTronix Ignitor, Ignitor II, and Ignitor III arrive with eyelet connectors installed on the wiring.

New "convert 240z points to pertronix" diagram - does it look ...

Pertronix Ignitor Wiring Diagram - pertronix ignition wiring diagram, pertronix ignitor ii wiring diagram, pertronix ignitor iii wiring diagram, Every electrical arrangement consists of various distinct parts. Each component ought to be placed and connected with other parts in particular manner. If not, the arrangement won't work as it ought to be.

Ignition gremlin : mgb & gt forum : mg experience forums ...

PRIOR TO INSTALLATION TURN IGNITION SWITCH OFF OR DISCONNECT THE BATTERY 2. Remove the distributor cap, and rotor. Do not disconnect spark plug wires.

Pertronix ignitor ii installation instructions pdf download ...

with the PerTronix Digital HP Mobile ignition, ... mounting location allows the harness wires to reach the battery and ... WIRING DIAGRAM FOR. IGNITOR ...2 pages

Ignition wiring - help needed - the 'e' type forum

Ballast Resistor Pertronix Ignitor Wiring Diagram. Wiring the pertronix no brainer question ballast pertronics distributor install page 2 classic installing a ignitor 240z starts runs bypassing resistor electronic ignition tacho issue could it be kohm coil on 71. No Brainer Wiring Question Ballast Resistor Bmw 2002 And Other 02 Faq.

Pertronix ignition question | for plymouth road runners only ...

I'm installing a Pertronix Ignitor (original, not II or III). I've confirmed the coil has adequate resistance, greater than 1.5 ohm across the poles when not connected. Because the '67 'cuda has a ballast resistor (2 terminal), the instructions say to connect the black wire to the negative (-) side of the coil (easily done) and "connect the ...

Troubleshooting for pertronix ignitor and coil installation

06.10.2018. 5 Comments. on Pertronix Fiat X19 Electronic Ignition Wiring Diagram. Results 1 - 48 of Ignition Coil New VW X19 Volkswagen Beetle Jetta for Corolla MG The color of the plastic and the wires may differ from the pictures. Pertronix MR-LS1 Ignitor Ignition Module Marelli 4 Cylinder I4 Fiat Alfa Romeo ( Fits: Fiat Verify Fitment via ...

Pertronix electronic ignition installation for ford falcon ...

DOWNLOAD Pertronix Wiring Diagram With Factory Tach. Close DOWNLOAD. ... This is the case if you install a Pertronix Ignitor System, which I am doing. From your guys . New factory oem style harness(yes still pink wire). I have wired it precisely to the John Hull wiring diagram with the BR wired in. . I know the tach worked with the factory ...

How to wire the zx distributor and ignition module; or the ...

block. Bypass this wire with a 12-gauge copper stranded wire. 1. Attach the black Ignitor wire to the negative coil terminal. (See Figure A) 2. Attach the red Ignitor wire to the positive coil terminal. (See Figure A) 3. Check to insure that the polarity is correct, and that all connections are tight. 4. Re-connect the battery. 5.

Pertronix ignition and ballast resistor - moparts forums

The wiring diagram shown below was obtained from Pertronix to show the proper hookup for a Pertronix Igniter in a car wired for positive ground, or earth if you prefer. It goes without saying that this is valid only for cars without ballast resistors, viz., our T-series cars.

Pertronix install - page 2 - classic cougar community

This is the distributor for which the Pertronix Ignitor II was created--any Autolite or Motorcraft single- or dual-point distributor. With the Ignitor II, you don't need Ford's Dura-Spark ignition or ... NOTE: Don't forget to install the ground wire, or the engine will not start! ...

Amazon.com: pertronix 1146a ignitor for delco 4 cylinder ...

Do you mean a nominal 1.5 Ohm coil with a ballasted wiring loom, or a 3.0 Ohm coil (for any year wiring loom) with or without a ballast wire in the loom, or an external (e.g. ceramic) resistor? The Pertronix Ignitor needs 12V to its red wire, and a ground to its black wire. UK/USA pre 1975/76 MGBs came stock with a 3 Ohm coi

Pertronix electronic ignition systems | the aftermarket's ...

pertronix ignitor wiring diagram - You will want an extensive, expert, and easy to understand Wiring Diagram. With this sort of an illustrative manual, you'll be able to troubleshoot, stop, and full your tasks with ease. Not just will it help you accomplish your required final results more quickly, but in addition make the entire procedure ...

Pertronix/resistor wire | vintage mustang forums

The wiring diagram shown below was obtained from Pertronix to show the proper hookup for a Pertronix. POWER RELAY INSTALLATION INSTRUCTIONS a PerTronix ignition power relay may be easier than cutting into the vehicles wiring harness and replacing wires. A top view of the regulator is shown in diagram below to help with terminal. PerTronix, Inc ...
