Plumbing drain traps: This plumbing traps (interceptors) article describes plumbing traps (interceptors) and how to diagnose, find, and cure odors in buildings including septic or sewage or sewer gas smells or "gas odors" in buildings with a focus on homes with a private onsite septic tank but including tips for owners whose home is connected to a sewer system as well.

Diagram typical house plumbing bathroom plumbing diagram image of can p trap be installed higher than plumbing bathroom sink drain size kansas city drain cleaning basics electrical plan plumbing design. There is a p trap in the 4″ cast iron under the basement slab. This is the ideal option since you can easily pour the concrete over the floor ...

Boundary Trap Gully Sloped Junction Vertical Junction SEWER SERVICE DIAGRAM LGA. SUBURB OF SSD No. Lot No. House No. Street SCALE Licence No. Now / COC No. Signature: Date Inspection Opening FW On Back Junction Air Admitance Valve Basin Bidet Shower Floor Waste Gully Bath Waste Clean Out Sink (kitchen) AAV B Bid Shr FW Bth CO S Sink (bar ...

Sewer house trap diagram

An ORG has a grate that pops out and allows the sewerage to overflow freely outside if you have a blockage in your plumbing. Diagram via Power Water. Usually the ORG is at least 100mm (although Queensland Urban Utilities state 75mm) lower than the lowest waste outlet in your home (eg. basin, shower or toilet) and at least 150mm above the ...

sewer force main 4'-6" 2'-6" s-8rrh 1-21-00 dhl 6-18-08 standard main marker for sewer force mains in easements notes: 1. plastic marker shall be green in color. 2. markers shall be labeled "raleigh sewer" 3. to be spaced every 300 feet on each side of any roadway or junction. 4. markers shall be round 4" in diameter.

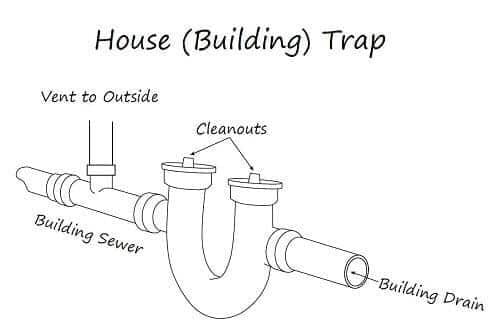

In the drawing above, you can see the trap as a 'u' shape in the sewer line. It has two caps pointing to the sky. Here in the drawing, the capped ends are labeled as "clean outs". This is where the Sewer Cleaning Technician will first attempt to clear a blockage from since sewer backups often occur here at the trap or "house trap".

Sewer house trap diagram.

A properly installed P-trap, like in the diagram above, will always keeps it's water seal. If you have S-trap drain, and notice sewer-type odors in the room, you can run the water slowly down the drain for a few seconds to replenish the trap-seal as a temporary fix.

The bathroom traps primary function is to retain water to block sewer gases from passing through the plumbing drain pipes into the air. Bathroom drains, traps, and extension tubes are 1-1/4" in diameter. The trap adapter is the piece on the drain pipe sticking out of the wall that the trap connects to.

Plumbing S- Trap Codes & Hazards S-trap siphonage risks sewer gas entry, Plumbing Fixture & Trap Defects Other causes of sewage odors, septic odors, sewer gas, rotten egg, or other indoor gas odors Questions & answers about plumbing traps or plumbing interceptors

Balkan is expert at sewer house trap replacement and repair. We are also expert at understanding the function and purpose of your main house trap, something ...

Every plumbing fixture has a trap. The purpose of a trap is to prevent foul-smelling sewer gas from coming back into the house. The diagram at right shows a P-trap, which can be found at sinks, showers, and bathtubs. The left side of the trap connects to the plumbing fixture, and the right side connects to the sewer.

Visit https://www.balkanplumbing.com/house-sewer-trap-line-drain-tutorial/ to find out why a house sewer trap is more important than you might think, it is a...

Dry P-Traps When the interceptor or trap loses its water seal, it provides sewer gases passage to re-enter the house via the drain. Leaky P-Traps The leaks often start small and snowball into a big problem if not fixed straight away. This leak frequently leads to a clogged drain, causing a foul odor.

trailer trap is required to be placed in the building sewer/sewer lateral as per 1003.5, B108.10, B112, C107.5.1 or C112. 1001.7 Unions (Threaded) Unions may be used in the trap seal and on the inlet side of the trap. Unions shall have metal-to-metal seats. integral 1001.8 Number of Traps Per Fixture 1001.8.1 Plumbing fixtures, excepting those ...

Main sewer line trap; Luckily, there is a solution to the building trap problem: building trap removal. Plumbing experts are more than able to locate, remove, and replace a building trap with a much safer and secure piping method for your home. The process is quick, efficient, and will protect your home from the damaging effects of a building trap.

This is something every home owner should take a few minutes to do before they are in a distressful situation. The easiest way to find the sewer trap is to locate the fresh air inlet pipe which is typically located near the front wall of your house. On the outside front or side of your house it will be exposed and covered by a grating.

Every fixture in your house has P-trap. It is named as such since it looks like an inverted P. Check underneath your kitchen or bathroom sink and you will see the P-trap. You can however not see your shower/tub P-trap unless you have an unfinished basement.

This home plumbing diagram illustrates how your home should be plumbed. The different colour lines in this drawing represent the various plumbing pipes used. The blue lines are the fresh water supply entering the home. The red lines are the hot water supply after it has left the hot water tank. The black lines are waste pipes (grey water and ...

Plumbing traps, requirements, codes, defects, sewage odors ...

P-Traps . Immediately beneath a sink, bathtub, or other plumbing fixture, the fixture drain opening leads to a curved segment of pipe known as the P-trap, which is normally a 1 1/4 to 2-inch-diameter segment of pipe with a sharp curved bend in it, shaped like the letter "P." . The purpose of this drain trap is to hold standing water, which seals the drain system and prevents sewer gases from ...

Sewerage | south east water

Trap plugs or caps cost around $10.00 or less each. They are made in at least three varieties, and are readily available from any plumbing supply or local hardware store. They are easily installed on a house sewer using basic household tools or can be installed by your plumber.

Sewerage | south east water

Basic Plumbing Diagram Indicates hot water flowing to the fixtures Indicates cold water flowing to the fixtures *Each fixture requires a trap to prevent sewer/septic gases from entering the home All fixtures drain by gravity to a common point, either to a septic system or a sewer. Vent stacks allow sewer/septic gases to escape and provide

Civil ki goli - different types of traps floor trap or ...

House sewer trap The house sewer trap is the main clean out for both inside and outside your home. It is usually located at the very front of your home or basement. In NYC it is U shaped and has 2 clean out plugs. If the caps are not on properly odors can escape into your house, or waste water can escape as well.

What you need to know about water emergencies: – philadelphia ...

A rough-in plumbing diagram is a simple isometric drawing that illustrates what your drainage and vent lines would look like if they were installed, but all of the other building materials in your house were magically removed. You would see the pipes in three dimensions, and be able to see all of the connections, the pipe sizes, fittings and ...

House trap replacement | terry love plumbing advice & remodel ...

A house trap is a specialty fitting, shaped like the letter U to prevent odors from city sewer line. Water acts as a natural barrier, blocking gases from escaping, and preventing them from entering your house.

Plumbing vents: common problems and solutions | family handyman

Sewer Service Diagram (SSD) Requirements A Sewer Service Diagram (SSD) shows the location of private wastewater service pipes on a property. In NSW where Fair Trading and delegated authorities are responsible for conducting plumbing and drainage inspections plumbers/drainers must book an inspection and submit an

How a house works: a simple plumbing diagram of traps and ...

Isaac, all homes are going to have some means of trapping against sewer gases. Some homes have no trap on the main drain itself from the home. When this is the case any trap that is not used for a long time can dry out and sewer gases from the city sewer can then enter the home when the house is under negative pressure. Quite common really.

Main sewer maintenance contract | $49.99 sewer service | new york

House traps were originally designed to prevent sewer odors from escaping your drains and re-entering your home. A typical house trap (also known as a "p-trap") looks like a "U" in your plumbing line. Essentially, water gets caught in the curved pipe and blocks gasses from drifting back through the system.

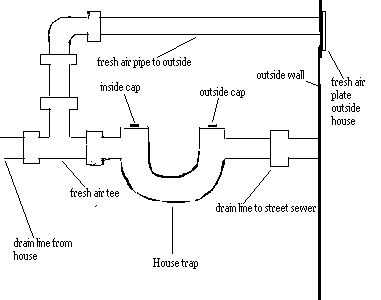

The house or main trap and fresh air inlet

Sewer house trap diagram. Place clean out within 5 feet of house foundation. Markers shall be round 4 in diameter. This plumbing traps (interceptors) article describes plumbing traps (interceptors) and how to diagnose, find, and cure odors in buildings including septic or sewage or sewer gas smells or gas odors in buildings with a focus on ...

Modern plumbing illustrated; a comprehensive and thoroughly ...

A double vented sewer trap allows for easy access when cleaning the line towards the house or out of the house towards the roadway. It is possible that your sewer line has a single vent trap which is much more challenging when trying to clean the line as the entrance point does not easily accommodate both ends of the sewer line.

How to clear floor drains and main drainpipe blockages ...
