36 the vector diagram below represents the velocity

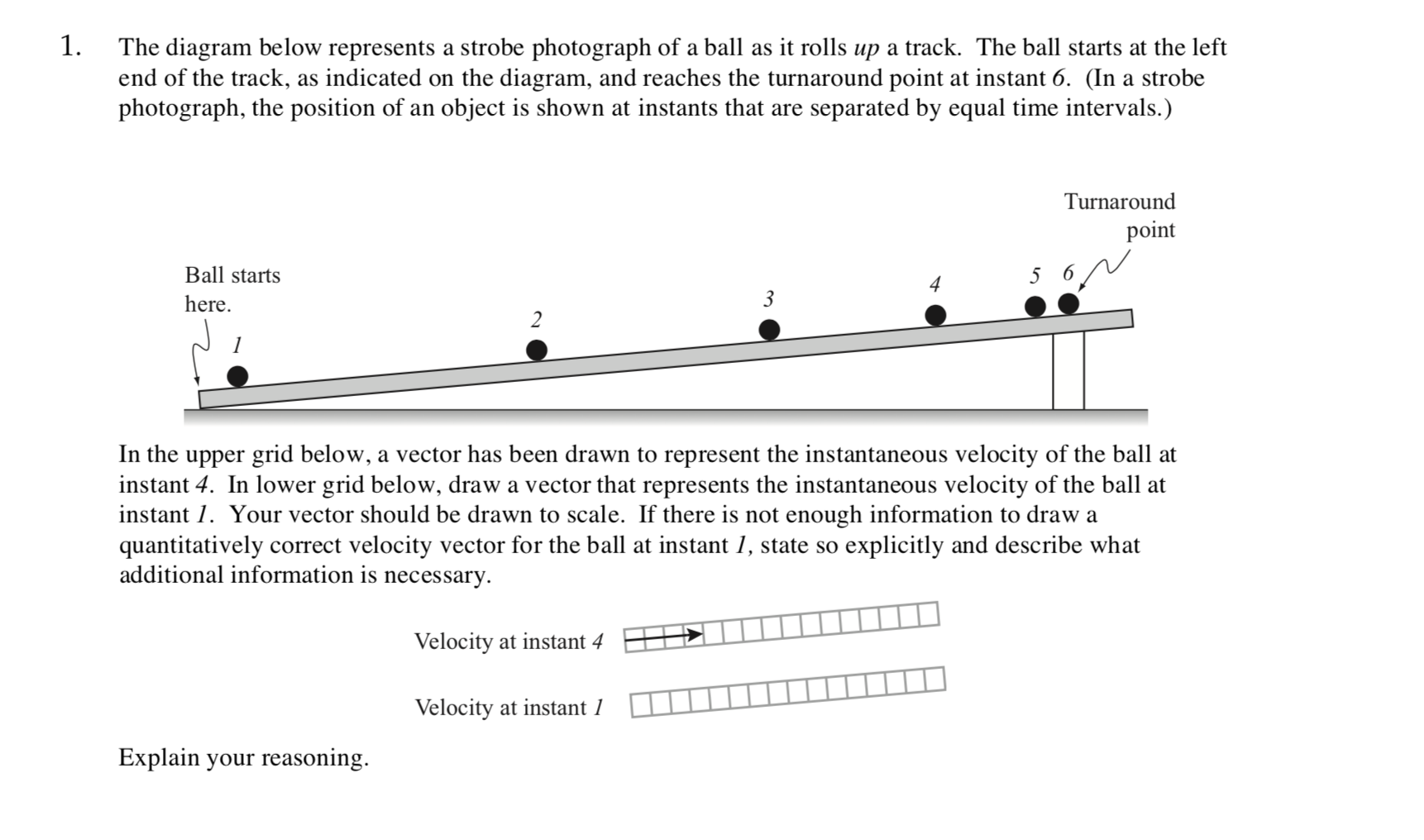

The diagram below represents a strobe photograph of the motion of a ball as it rolls upa track. Draw vectors on your diagram that represent the instantaneous velocity of the ball at each of the labeled locations. The "tail" of the vector should be located on the ball itself. The vector diagram below represents the velocity of a car traveling 24 meters per second 35 ° east of north. 8. Base your answer(s) to the following question(s) on the information below. An out±elder throws a baseball to the ±rst baseman at a speed of 19.6 meters per second and an angle of 30 ° above the horizontal.

39.On the diagram above, construct the resultant vector that represents the dog's total displacement. 40.Using a metric ruler and the vector diagram, determine the scale used in the diagram. 41.The graph below represents the velocity of an object traveling in a straight line as a function of time.

The vector diagram below represents the velocity

The graph below represents the relationship between speed and time for a car moving in a straight line (Speed v Time graph, linear.) The magnitude of the cars acceleration is? a) 0.10m/s^2 b) 0.01m/s^2 c) 10. m/s^2 d) 1.0 m/s^2 c The velocity of a car changes from 60 meters per second north to 45 meters per second north in 5.0 seconds. The diagram below represents a force vector, A, and a resultant vector, R. Wthich force vector B below could be added to force vector to produce resultant vector R? Which terms both represent scalar quantities? A) displacement and speed B) distance and velocity C) distance and speed D) disp lacement and velocity Which term a scalar quantity? 9) The speed-time graph below, which represents the linear motion of a cart. (a) Determine the magnitude of the acceleration of the cart during interval AB. [ ...37 pages

The vector diagram below represents the velocity. launched with a velocity of 2.0 meters per second eastward from the west bank of the stream. A) 8.6 s B) 12 s C) 15 s D) 60. s ... 24.The vector diagram below represents the horizontal component, FH, and the vertical component, FV, of a 24-newton force acting at 35° above the horizontal. Which diagram below accurately represents the magnitude and direction of the horizantal and vertical velocity vector components for position Y? O Question: 15 1 point The motion diagram represents the motion of a horizontally launched projectile. The horizontal and vertical velocity vector components are shown for position X. D. velocity. 2. When two concurrent forces of 4 ... displacement as shown in the diagram? A. 1.0 meter ... The diagram below represents a force vector, A,.5 pages The vector diagram below represents the velocity of a car traveling 24 meters per second east of north. What is the magnitude of the component of the car's.12 pages

The vector diagram below represents the velocity of a car traveling 24 meters per second 35° east of north. What is the magnitude of the component of the car's velocity that is directed eastward? Categories Question-Answer. Leave a Reply Cancel reply. Your email address will not be published. Required fields are marked * Vector diagrams can be used to describe the velocity of a moving object during its motion. For example, a vector diagram could be used to represent the motion of a car moving down the road. In a vector diagram, the magnitude of a vector quantity is represented by the size of the vector arrow. Below, we have shown the correlation between the trigonometric rule and velocity vectors. Velocity Vectors and Trigonometric Rules Here, we can notice that vx is treated as the adjacent side and vy as the opposite and v as the hypotenuse. Determining the Magnitude and Angle of the Total Velocity The vector diagram below represents the horizontal component, FH, and the vertical component, FV, of a 24-newton force acting at 35 above the ... Which formula represents the velocity of the block as it moves along the horizontal surface from point E to point F? A. v = s t B. v = v 2 C. vf 2 = 2a s D. v = 1 2

The vector diagram below represents the horizontal component, F H, and the vertical component, F V, of a 24-newton force acting at 35° above the horizontal. What are the magnitudes of the horizontal and vertical components? (1) FH = 3.5 N and FV = 4.9 N (2) FH = 4.9 N and FV = 3.5 N (3) FH = 14 N and FV = 20. N (4) FH = 20. N and FV = 14 N 3. On the diagram above, use a ruler and protractor ... vector diagram below represents the girl's ... Determine the acceleration acting on the crate.4 pages 35. The diagram below represents a box sliding down an incline at constant velocity. Which arrow represents the direction of the frictional force acting on the box? A. A B. B C. C D. D 36. In the accompanying diagram, a box is at rest on an inclined plane. Which vector best represents the direction of the normal force acting on the box? A. A B ... Question 1 (5 points) A projectile is launched with an initial horizontal velocity (and no vertical velocity). The initial velocity vector is shown on the right; it is labeled vi.
