Warn 8274 wiring. Discussion in 'Early CJ5 and CJ6 Tech' started by bkd, Dec 1, 2009. Dec 1, 2009. bkd Moderator Supreme Staff Member K-Town Tenn. Joined: Apr 29, 2007 Messages: 3,292. I've searched the threads but am still confused about proper wiring. Introduction. I scored an older Warn 8274 8000lb winch for $200 and decided to completely strip and rebuild it. This article details how. A lot of people have contacted me and asked what the process was that I used to clean up the winch - apparently I did a pretty good job!

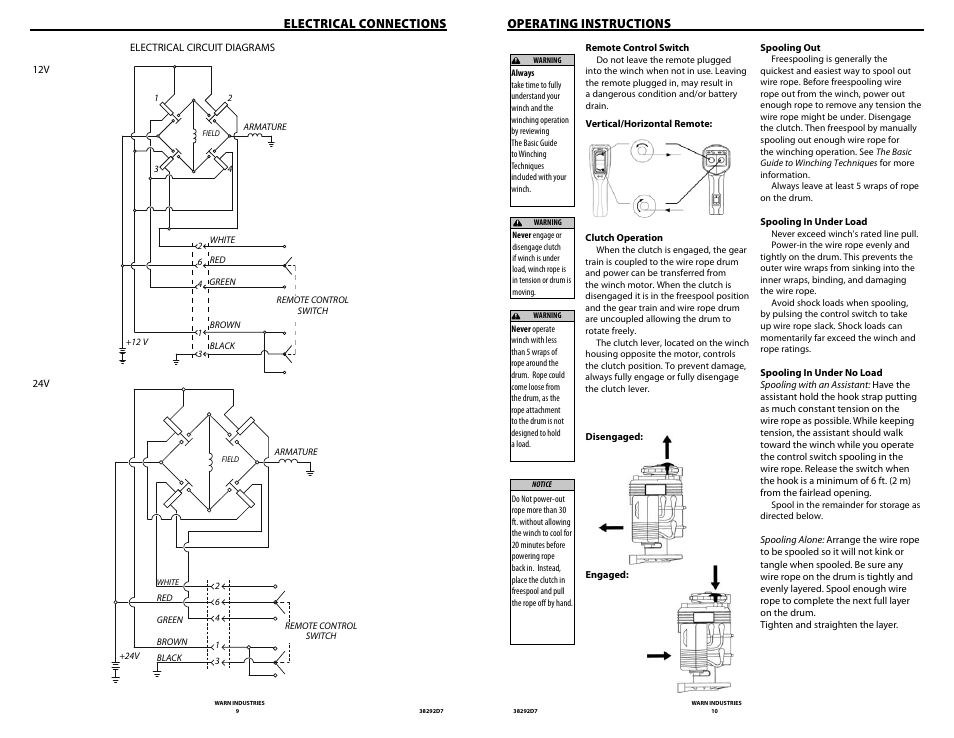

Nov 20, 2018 · Warn 8274 Winch Wiring Diagram. warn winch solenoid wiring diagram atv download fair , warn wiring diagram winch control unbelievable mediapickle me fair, warn. Rebuilding a Warn Here is a schematic for all 4 solenoid Warn winches: Attached Here is a wiring diagram for an Winch. This specific graphic (Warn Winch Wiring Diagram Awesome Winches ...

Warn 8274 wiring diagram

Re: Help with wiring up a WARN 8274 8000lb winch. Reply #7 - Wednesday, Sep 28, 2011, 06:21 PM. You should be able to test them with a test light. Free spool out some cable and then have someone you can trust hit the switches one at a time. When they do this check the soleniods with the test light. Feb 26, 2019 · Warn 8274 Wiring. I am having some problems with my warn winch. At first, it would click both in and out. I got a new motor from DB electrical, and now it. It is very straight forward, there are only three wires. On my Warn , the white wire is hot and the green is in and the black is out. Actually, I'm not sure about. Warn Winch 8274 Wiring Diagram. I scored an older Warn lb winch for $ and decided to completely strip and rebuild it The main aluminum housing I painstaking cleaned with a rotary wire brush in .. Here are links to the Warn exploded diagrams and parts lists. Help with wiring up a WARN lb winch.

Warn 8274 wiring diagram. Here is a wiring diagram for an 8274 Winch April 8th, 2008 #4. Join Date Mar 2008 Member #103 Last Online August 9th, 2012 Posts 10,594 User Name Brody Real Name ... Warn winch wiring diagram-inside the solenoid box: February 2nd, 2010 #16. Join Date Mar 2008 Member #103 Last Online August 9th, 2012 Posts 10,594 User Name Brody Jul 06, 2019 · 3 wire warn control diagram wiring diagram het. warn 8274 winch wiring diagram free download wiring diagram local. A set of wiring diagrams may be required by the electrical inspection authority to accept association of the domicile to the public electrical supply system. Warn 8274 wiring diagram (2) By Herm | Published July 7, 2012 | Full size is 1280 × 960 pixels T-90, D-18, OD and pto adapter. Warn 8274 wiring diagram. Bookmark the permalink. Herm The Overdrive Guy Proudly powered by WordPress. ... 3000 Pound Badland Winch Wiring Diagram.Warn 8274.Real Time Help Albright Wiring For 8274 W 5 Wire. Billavista Com. Warn Winch 8274 Wiring Diagram. This specific clear warn winch wiring diagram alarming winches aloft will be labelled calm with. Collection of warn winch wiring schematic. At aboriginal it would bang both in and out. I am accepting some problems with my 8274 50 warn winch.

Rockford Fosgate Wiring Diagram. 6 or 9 pin diagnostics connector. 03 dodge truck fuse box warn 2500 atv winch wiring in addition replacement winch contactor along with wiring diagram warn 8274 winch moreover warrior winch wiring diagram in. 04. ... This manual has been written in a format that is designed to meet the Detroit Series 60 Ecm ... 30 1 2048 WIRE ROPE CLAMP 31 1 7610 BUSHING (IN 8680 KIT) 32 1 7532 END SUPPORT, ASSEMBLY (Includes items 31, 33 and 7) 33 1 7582 END CAP Warn Industries, Inc. P/N 37492 REV F4 WARN CE M8274-50 WINCH REPLACEMENT PARTS LIST ORDERING INFORMATION: When ordering please give Warn Model , Serial number & Battery voltage. Warn Winch Wiring Diagram - Wiring Diagram is the graphical depiction of a complicated electrical circuit. It stands for the physical components of the electrical circuit as geometrical shapes, with the real power and also connection links between them as slim edges. Well it's a Warn 8274-50 winch. I do have the controller, but i'm wanting to add a hard wiring switch in the jeep to control it as well. When looking at the controller, I believe there is 5 wires hooked up. I need to know how to hook up my mon on - off - mon on 3 prong switch to this. I think I have to get another on - off switch.

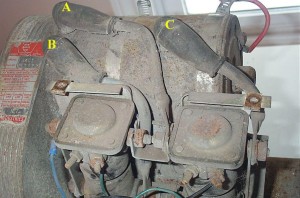

Aug 11, 2018 - warn 7 on a yj winches rebuilding parts information diagrams testing sites remote wiring diagram winch solenoid an albright picture of warn wiring piratex.com x and offroad schematic wiring. diagrams. mashups.co rebuild a diagram. atv volt m lb switch diagram for winch how to wire up jeepforum controller solenoid superwinch xd9i question.. 9 ti 9. ti manual Aug 17, 2018 · Warn Parts Diagram ~ hello friends our site, this is images about warn parts diagram posted by Ella Brouillard in Warn category on Oct 30, You can also find other images like wiring diagram, parts diagram, replacement parts, electrical diagram, repair manuals, engine diagram, engine scheme, wiring harness, fuse box, vacuum diagram, timing belt ... I see lots of wiring diagrams for these things plus a warn 8274 and since the DC88 I ordered doesn't have all 4 posts on top - one on the side as pictured.. therefore obviously I just look at them with regards to that A post being on the side... Registered. Joined Nov 1, 2001. ·. 4,428 Posts. #6 · Jul 31, 2006. here's a hack pic of my 8274-50 wiring. I just replaced all four solenoids and the winch motor. I labeled the motor connections based on what was stamped on the motor to make it (hopefully) easier when you're at the winch.

Warn 8274 Rebuild Offroadsc

Winch wireless remote control wiring diagram superwinch wireless remote wiring diagram best warn atv winch wiring diagram a1500cl wire data file type. It shows how the electrical wires are interconnected and can also show where fixtures and components could be coupled to the system. Warn Winch 8274 Wiring Diagram Warn Winch Winch Winch Solenoid Atv …

Diagram For Winch In Cab Switch Patrol 4x4 Nissan Patrol Forum

Next diagrams is pretty simple, but using it in the opportunity of how the system operates is the different matter. The most sage advice is not only look at the diagram, but understand how the components operate when within use. 1999 Vw Jetta Wiring Diagram Source: ww2.justanswer.com. READ Warn Winch Model 8274 Wiring Diagram For Your Needs.

Truk Konstruksi Dc Enam Terminal Relay Relay Winch Motor Reversing Solenoid Switch 12 Volt Baru Penyebar Motor Winches Mobil Switch Relay Aliexpress

Warn Winch Wiring Diagram – warn winch wiring diagram, warn winch wiring diagram 2 solenoid, warn winch wiring diagram 3 solenoid, Every electrical arrangement consists of various unique components. Each component ought to be set and linked to other parts in particular manner. Otherwise, the arrangement will not work as it should be.

How To Make A Harbor Freight Wireless Winch Controller Work With A Warn Winch Second Generation Nissan Xterra Forums

19 Badland Wireless Winch Remote Control Wiring Diagram Images In 2021 Atv Winch Winch Trailer Wiring Diagram. The Most Thorough Warn 8274 Winch Rebuild On The Internet In 2021 Warn Winch Winch Work Truck. Warn 8274 Winch Motor Upgrade Winch Motor Warn Winch Automotive Engineering. Click This Image To Show The Full Size Version Warn Winch Winch ...

Custom Winch Wiring Ck5 Network

Diagram Warn Winch 8274 Wiring Picture Full Version Hd Quality. Cm Nrc Electric Wh Wireless Controller User Manual Ningbo Chima Co Ltd. 12v Electric Winch 12 000 Lbs Owner S Manual. Badland Winches Parts Wiring Diagram For All Models. Wiring Diagram For Installing Superwinch A3500 Winch Etrailer Com. Harken Sailboat Hardware And Accessories.

Warn Authorized Parts And Service Center For The M8274 50 Winch

Dec 07, 2017 · Warn 8274 Question Ih8mud Forum. Warn 8274 wiring ih8mud forum diagram herm the merging new control to old rebuild pirate 4x4 billavista com winch picture of 50 2 an albright 1986 winches rebuilding parts information solenoid question opel 1700 in m8274 free typical hot 2002 dodge ram mins diagrams nc4x4 bulldog light view 24 1978 custom ck5 forums mb 7942 large frame 3 wire 2040 on a yj cab ...

8274 Solenoid Replacement Pack Tpi 4 4 Landcruiser Parts And Accessories

Warn 8274 Motor Wiring Diagram. • Customer Service Line: WARN . Sliding Motor Pinion Gear. Brake: Upon completion of installation, check winch for proper. You can check the specs of your winch motor for maximum current when operating. Then go to My Warn uses 00 welding cable (nice and flexible) and is fantastic.

Warn Winch Wiring Diagrams Nc4x4

wiring up a warn 8274. does anyone have a diagram or pictures of how to wire this up? 16 Taco 87 MJ Chief in pieces Bought/Wheeled/Sold: 85 CJ, 79 FSJ, 05 LJ, 06 WK dayriesw is offline Quote Quick Reply Remove Advertisements. Sponsored Links JeepForum.com ...

Warn 8274 Universal Winch Mount Tmr Customs

Warn High Mount Winch Wiring Diagram. June 24, 2019. Warn 8274 Parts Diagram . Warn 8274 parts diagram web6.kreeftexpress.nl. Warn Hi Mount Winch 8274. 8274-50 - Warn Hi Mount Winch Standard 38631 - Warn www.roadrunneroffroad.com.au.

The Most Thorough Warn 8274 Winch Rebuild On The Internet Album On Imgur

So I bought a pack of 4 solenoids (BB1714) described as for early Warn model XD9000. Now a can’t get it to run at all. I have checked all the wiring and connections (they are the same as when it was working and every other internet pic I can find) and there is power and continuity everywhere there is supposed to be; good ground etc.

Dna Knowledge Base Warn 8274 High Mount Free Spool Problems

The M8274-Warn Industries' most iconic winch—is evolving. It will maintain all the things buyers love about the product: speed, durability, and its famous shape, but we've added more performance and more features. Comes with 150' of 3/8" diameter lightweight, easy-to-handle Spydura synthetic rope.

Warn Winch Wiring Diagrams Nc4x4

3000 Pound Badland Winch Wiring Diagram.Warn 8274.Real Time Help Albright Wiring For 8274 W 5 Wire. Billavista Com. Warn Winch 8274 Wiring Diagram. This specific clear warn winch wiring diagram alarming winches aloft will be labelled calm with. Collection of warn winch wiring schematic. At aboriginal it would bang both in and out. I am accepting some problems with my 8274 50 warn winch.

Billavista Com Warn 8274 Winch Rebuild Tech Article By Billavista

Apr 11, 2018 - warn 7 on a yj winches rebuilding parts information diagrams testing sites remote wiring diagram winch solenoid an albright picture of warn wiring piratex.com x and offroad schematic wiring. diagrams. mashups.co rebuild a diagram. atv volt m lb switch diagram for winch how to wire up jeepforum controller solenoid superwinch xd9i question.. 9 ti 9. ti manual

Wiring An 8274 Albright Ih8mud Forum

Warn Winch 8274 Wiring Diagram. I scored an older Warn lb winch for $ and decided to completely strip and rebuild it The main aluminum housing I painstaking cleaned with a rotary wire brush in .. Here are links to the Warn exploded diagrams and parts lists. Help with wiring up a WARN lb winch.

Warn 8274 On A Yj

Feb 26, 2019 · Warn 8274 Wiring. I am having some problems with my warn winch. At first, it would click both in and out. I got a new motor from DB electrical, and now it. It is very straight forward, there are only three wires. On my Warn , the white wire is hot and the green is in and the black is out. Actually, I'm not sure about.

Winch Solenoid Replacement Pirate 4x4

Rewiring And Troubleshooting A Warn M8000 Winch Part 1 Youtube

Picked Up Vintage Warn M8274 Jk Forum Com The Top Destination For Jeep Jk And Jl Wrangler News Rumors And Discussion

Amazon Com Orcish Winch Solenoid Relay 12v 500a For 8000 15000lb Atv Utv Truck Winch Replacement Automotive

Newest For Warn Winch Remote Wiring Diagram Stephan Fuchs

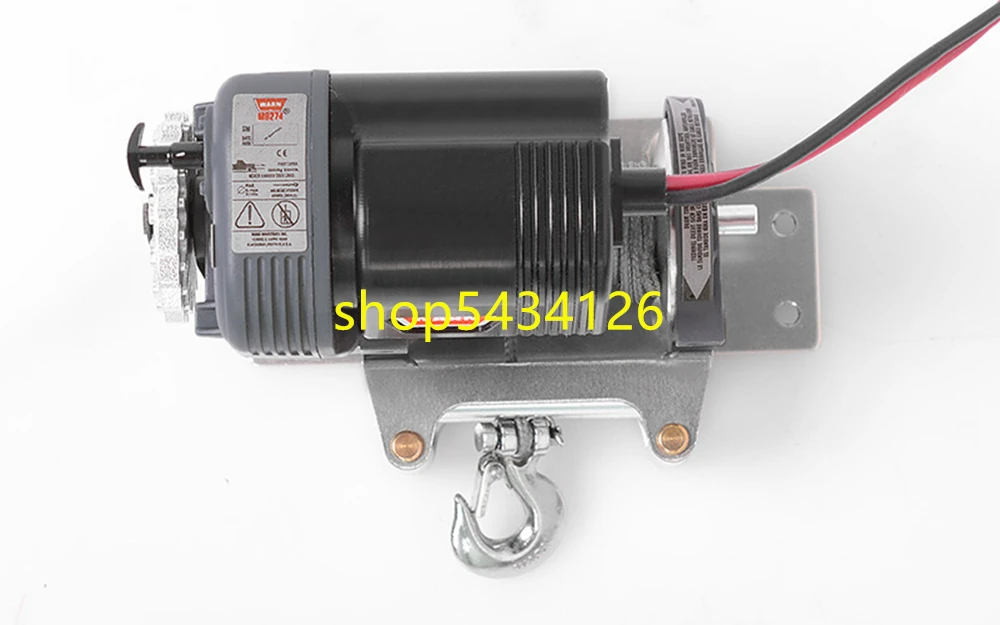

Rc Cars Metal Warn 8274 Winch For 1 10th Scale Model Toys Car 4wd Tf2 Traxxas Trx4 Scx10 Ii G500 G63 D90 Jeep Wrangler Wraith Parts Accessories Aliexpress
