Figure 1-2 shows a simple trunk and branch plumbing distribution system that supplies hot and cold water to three lavatories and two showers. Domestic hot water is supplied from a tank-type water heater to the hot water trunk. It flows along the trunk piping and eventually into a “riser” that leads to the fixture with the demand. Building the Drinking Water Plumbing Riser in Plumber. We will use the typical installation that we created in this example and will consider that the Plumbing Riser is of ascending type, and serves a 4-story building: Note that the Plumbing Riser will supply two Water Supply Systems at levels 2 and 4, while only one at levels 1 and 3.

Typical Plumbing System. Introduction. The residential plumbing . The most commonly used type of riser diagram for plumbing is the isometric riser .Residential Plumbing Plan Dwg schematron.org Free Download Here riser diagram double/king unit no C, Residential Site Plan Submittal Checklist Revised opportunities for residential plumbers now ...

Typical plumbing riser diagram

typ typical uon unless otherwise noted up up (penetrates floor slab) ur urinal v vent vb vacuum breaker vr vent rise vtr vent through roof wc water closet ... p-801 plumbing waste & vent riser diagram p-802 plumbing waste & vent riser diagram p-803 plumbing water riser diagram p-804 plumbing water riser diagram. 1.provided by others installed by plumbing contractor. note 1 hchandicapped hc handicapped t&p temperature & pressure relief line sh-1 shower 2"1-1/2"1-1/2" 1/2" 1/2" 2014 florida plumbing code. hb-1 hose bibb woodford model 24 - - - - fixture units ... waste and vent riser diagram Basic Plumbing Diagram Indicates hot water flowing to the fixtures Indicates cold water flowing to the fixtures *Each fixture requires a trap to prevent sewer/septic gases from entering the home All fixtures drain by gravity to a common point, either to a septic system or a sewer. Vent stacks allow sewer/septic gases to escape and provide

Typical plumbing riser diagram. Plumbing riser diagrams don't only indicate where risers are in a building. They also show other piping, heights of stories, and stacks. This a riser diagram for typical layout for kitchens and baths for certain hi-rises. The arrow pointing to the risers are just showing where the riser would ... plumbing riser diagrams cw hw hwr cw hw hwr g g g g g g g g g cw g st st st gw s ss s s s nettaarchitects architecture - planning - interior design 1084 route 22 west, mountainside, new jersey 07092 tel: 973.379.0006 fax: 973-379-1061 certificate of authorization ac-438 confidential and proprietary / ©dlb associates 2017 SPRINKLER RISER ROOM OR POST INDICATOR VALVE SHOWN ON: ______ ... ROOF TRUSS LOADING DIAGRAM ... Condensate drain piping shall be type 'K' Copper Pipe.63 pages

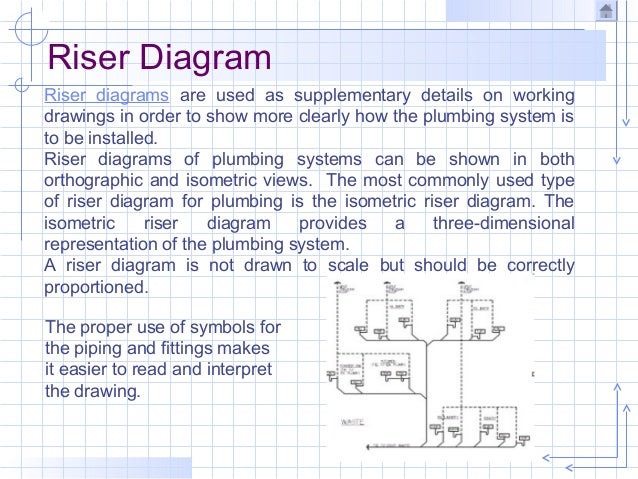

The proper use of symbols for the piping and fittings makes it easier to read and interpret the drawing. Page 21. Riser Diagram. Typical isometric Riser Diagram ... 3 (TYPICAL) ... FOR DOMESTIC WATER PIPING SIZES - REFER TO DOMESTIC WATER RISER DIAGRAM ... FOR WASTE AND VENT PIPING SIZES - REFER TO RISER DIAGRAM ON.32 pages Mar 27, 2018 - How To Draw A Plumbing Riser Diagram - thank you for visiting our site. At this time were delighted to declare that we have discovered an ... A plumbing riser diagram consists of water, drain and vent lines being installed. Indicate all pipe sizes and show cleanouts for the sanitary system. A sample of what a riser diagram consists of is shown above. What is a plumbing riser? Riser – a vertical metal or plastic supply line that connects a faucet or shower fixture to the water ...

30 Sep 2020 — A well-planned diagram is essential for any remodeling project that ... plan views and riser drawings either by hand or using a computer. Isometric Plumbing Drawings All commercial building permit applications, in which the plumbing system has not been designed by a mechanical engineer, must include two sets of isometric plumbing drawings. The isometric drawings should include the following information: 1. Isometric drawings of drain, waste and vent (D.W.V.) must include the size ... Basics Needed To Draw A Riser Diagram. Here's what you need to draw a correct riser diagram: 30/60/90 triangle. fixture unit table. pipe size table. knowledge of dry and wet vents. knowledge of illegal fittings under slabs. knowledge of best plumbing practices (CLICK HERE to download) The plastic triangle allows you to draw the proper lines in ... Basic Plumbing Diagram Indicates hot water flowing to the fixtures Indicates cold water flowing to the fixtures *Each fixture requires a trap to prevent sewer/septic gases from entering the home All fixtures drain by gravity to a common point, either to a septic system or a sewer. Vent stacks allow sewer/septic gases to escape and provide
